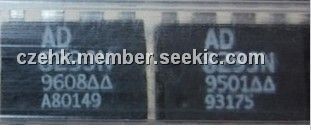

AD829JN

Product Summary

The AD829 is a low noise , high speed op amp with custom compensation that provides the user with gains from ±1 to ±20 while maintaining a bandwidth greater than 50 MHz. The AD829’s 0.04°differential phase and 0.02% differential gain performance at 3.58 MHz and 4.43 MHz, driving reverse-terminated 50Ωor 75Ω cables, makes it ideally suited for professional video applications. The AD829 achieves its 230 V/μs uncompensated slew rate and 750 MHz gain band-width product while requiring only 5 mA of current from the power supplies.The AD829’s external compensation pin gives it exceptional versatility. For example, compensation can be selected to opti-mize the bandwidth for a given load and power supply voltage.As a gain-of-two line driver, the –3 dB bandwidth can be in-creased to 95 MHz at the expense of 1 dB of peaking. In addi-tion, the AD829’s output can also be clamped at its external compensation pin.; The AD829 has excellent dc performance. It offers a minimum; open-loop gain of 30 V/mV into loads as low as 500Ω, low; input voltage noise , and a low input offset volt-age of 1 mV maximum. Common-mode rejection and power supply rejection ratios are both 120 dB.The AD829 is also useful in multichannel, high speed data;conversion where its fast (90 ns to 0.1%) settling time is of; importance. In such applications, the AD829 serves as an input; buffer for 8-to-10-bit A/D converters and as an output I/V con-; verter for high speed D/A converters.

Parametrics

(1)Supply Voltage:± 18 V; (2)Internal Power Dissipations2:Plastic (N)= 1.3 Watts;Small Outline (R)=0.9 Watts;Cerdip (Q)=1.3 Watts;LCC (E)=0.8 Watts;; (3)Input Voltage :±V S; (4)Differential Input Voltage3:± 6 Volts; (5)Output Short Circuit Duration: Indefinite; (6)Storage Temperature Range (Q, E): –65°C to +150°C; (7)Storage Temperature Range (N, R): –65°C to +125°C; (8)Operating Temperature Range; (9)AD829J =0°C to +70°C; (10)Lead Temperature Range (Soldering 60 sec): +300°C

Features

(1)High Speed:120 MHz Bandwidth, Gain = –1;230 V/R s Slew Rate;90 ns Settling Time to 0.1%; (2)Ideal for Video Applications:0.02% Differential Gain;0.04°Differential Phase; (3)Excellent DC Precision:1 mV max Input Offset Voltage (Over Temp);0.3 μV/°C Input Offset Drift; (4)Flexible Operation:Specified for ±5 V to ±15 V Operation;±3 V Output Swing into a 150Ω Load External Compensation for Gains 1 to 20;5 mA Supply Current; (5)Available in Tape and Reel in Accordance with EIA-481A Standard

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20127243535557.jpg">
