Product Summary

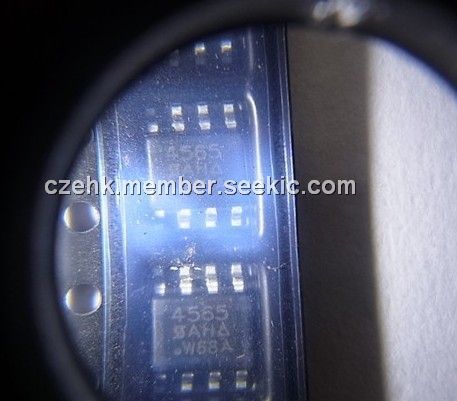

The SI4565DY-T1-E3 is a P-channel 40V MOSFET. Its applications include CCFL inverter.

Parametrics

SI4565DY-T1-E3 absolute maximum ratings: (1)drain-source voltage: -40V; (2)gate-source voltage: 16V; (3)continuous drain current: -3.3A; (4)pulsed drain current: 30A; (5)maximum power dissipation: 1.1W; (6)operating junction and storage temperature range: -55 to 150℃.

Features

SI4565DY-T1-E3 features: (1)TrenchFET Power MOSFET; (2)100% Rg Tested; (3)UIS Tested.

Diagrams

SI4565DY-T1-E3 block diagram
