Product Summary

The TMS370Cx5x family of single-chip 8-bit microcontrollers provides cost-effective real-time system control
through integration of advanced peripheral function modules and various on-chip memory configurations. The
TMS370Cx5x family presently consists of twenty-one devices which are grouped into seven main sub-families:
the TMS370Cx50, TMS370Cx52, TMS370Cx53, TMS370Cx56, TMS370Cx58, TMS370Cx59, and
SE370C75x.
The TMS370Cx5x family of devices is implemented using high-performance silicon-gate CMOS EPROM and
EEPROM technologies. The low-operating power, wide-operating temperature range, and noise immunity of
CMOS technology, coupled with the high performance and extensive on-chip peripheral functions, make the
TMS370Cx5x devices attractive in system designs for automotive electronics, industrial motor control,
computer peripheral control, telecommunications, and consumer application. Table 2 provides a memory
configuration overview of the TMS370Cx5x devices.

Diagrams

CMOS/EEPROM/EPROM Technologies on a
Single Device
–  Mask-ROM Devices for High-Volume
Production
–  One-Time-Programmable (OTP) EPROM
Devices for Low-Volume Production
–  Reprogrammable EPROM Devices for
Prototyping Purposes
 Internal System Memory Configurations
–  On-Chip Program Memory Versions
–  ROM: 4K to 48K Bytes
–  EPROM: 16K to 48K Bytes
–  ROM-less
–  Data EEPROM: 256 or 512 Bytes
–  Static RAM: 256 to 3.5K Bytes
–  External Memory/Peripheral Wait States
–  Precoded External Chip-Select Outputs
in Microcomputer Mode
 Flexible Operating Features
–  Low-Power Modes: STANDBY and HALT
–  Commercial, Industrial, and Automotive
Temperature Ranges
–  Clock Options
–  Divide-by-4 (0.5 MHz – 5 MHz SYSCLK)
–  Divide-by-1 (2 MHz – 5 MHz SYSCLK)
Phase-Locked Loop (PLL)
–  Supply Voltage (VCC): 5 V ± 10%

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

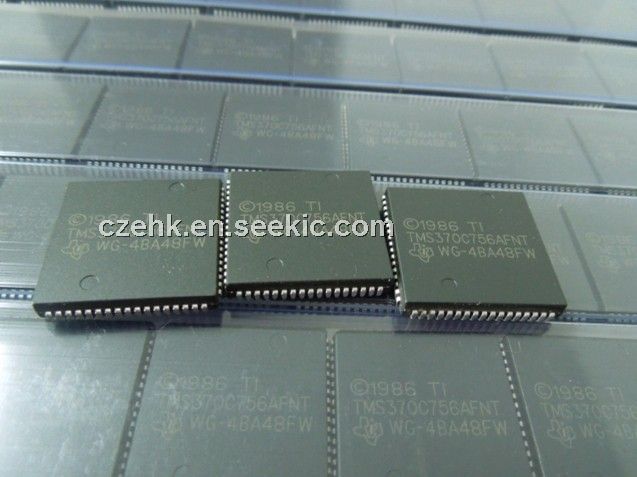

TMS370C756AFNT
