Product Summary
The BB148 is variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD323 very small plastic SMD package. The excellent matching performance is achieved by gliding matching and a direct matching assembly procedure. The diodes are delivered on tape in several matched groups and are also available unmatched upon request. The unmatched type, BB158 has the same specification.
Parametrics
BB148 absolute maximum ratings: (1)reverse voltage: 30V; (2)forward current: 20mA; (3)storage temperature: -55 to 150℃; (4)junction temperature: -55 to 125℃.
Features
BB148 features: (1)Excellent linearity; (2)Excellent matching to 1% DMA; (3)Very small plastic SMD package; (4)C28: 2.6 pF; ratio: 15; (5)Low series resistance.

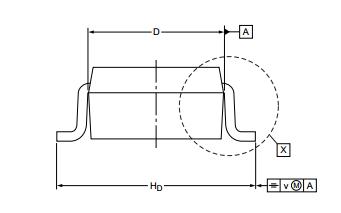

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BB148 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BB148 /T3 |
NXP Semiconductors |
Rectifiers TAPE13 DIO-RFSS |
Data Sheet |
Negotiable |
|
||||||||||||
|
BB148 T/R |
NXP Semiconductors |
Varactor Diodes TAPE-7 DIO-RFSS |
Data Sheet |
Negotiable |
|
||||||||||||
|
BB148,115 |
NXP Semiconductors |
Varactor Diodes TAPE-7 DIO-RFSS |
Data Sheet |
|
|
||||||||||||
|
BB148,135 |
NXP Semiconductors |
Varactor Diodes TAPE13 DIO-RFSS |
Data Sheet |
|
|
||||||||||||
