Product Summary
The MC14013B is a dual type D flip–flop. It is constructed with MOS P–channel and N–channel enhancement mode devices in a single monolithic structure. Each flip–flop has independent Data, (D), Direct Set, (S), Direct Reset, (R), and Clock (C) inputs and complementary outputs (Q and Q ). These devices may be used as shift register elements or as type T flip–flops for counter and toggle applications.
Parametrics
MC14013BDR2 absolute maximum ratings: (1)DC supply voltage range: -0.5 to 18V; (2)input or output voltage range: -0.5 to VDD+0.5V; (3)Input or output current: 10mA; (4)power dissipation: 500mW; (5)ambient temperature range: -65 to 150℃; (6)storage temperature range: -65 to 150℃.
Features
MC14013BDR2 features: (1)Static Operation; (2)Diode Protection on All Inputs; (3)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (4)Logic Edge–Clocked Flip–Flop Design Logic state is retained indefinitely with clock level either high or low;information is transferred to the output only on the positive–going edge of the clock pulse; (5)Capable of Driving Two Low–power TTL Loads or One Low power Schottky TTL Load Over the Rated Temperature Range; (6)Pin–for–Pin Replacement for CD4013B.

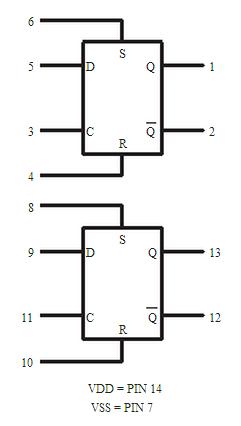

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14013BDR2 |
ON Semiconductor |
Flip Flops 3-18V CMOS Dual |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC14013BDR2G |
ON Semiconductor |
Flip Flops 3-18V CMOS Dual D-Type |
Data Sheet |
|
|
||||||||||||
