Product Summary

The TEA2025B is a stereo audio amplifier. It is a monolithic integrated circuit in 12+2+2 Powerdip and 12+4+4 SO, intended for use as dual or bridge power audio amplifier port-able radio cassette players.

Parametrics

TEA2025B absolute maximum ratings: (1)supply voltage: 15V; (2)output peak current: 1.5A; (3)junction temperature: 150℃; (4)storage temperature: 150℃.

Features

TEA2025B features:(1)dual or bridge connection modes; (2)few external components; (3)supply voltage down to 3V; (4)high channel separation; (5)very low switch on/off noise; (6)max gain of 45dB with adjust external resistor; (7)soft clipping; (8)thermal protection; (9)3V < V CC < 15V.

Diagrams

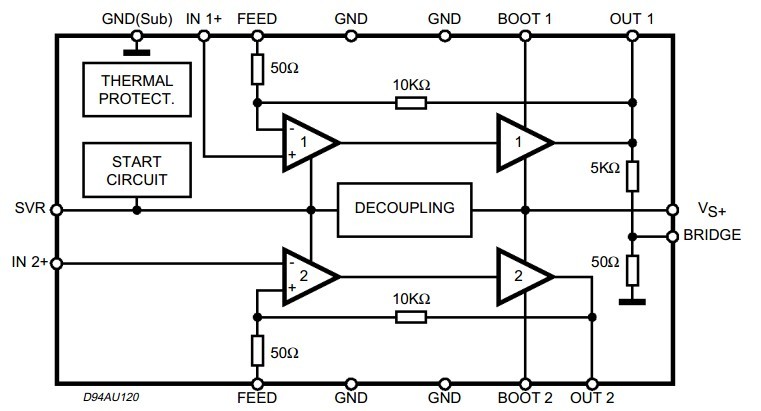

TEA2025B block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TEA2025B
TEA2025B
STMicroelectronics
Audio Amplifiers Stereo Audio Amp
Data Sheet
0-1: $0.68
1-10: $0.55
10-100: $0.46
100-250: $0.40
