Product Summary
The W83310S-R2 is a linear regulator which provides achieves peak 2.0 Amp/cont. 1.8 Amp bi-directional sinking and driving capability for DDR SDRA M bus terminator application. The chip simply implement a stable power supply which can track half of input power dynamically for bus terminator with a single chip; that is the chip integrates two power MOSFETs. There is no any external power device needed. The W83310S-R2 is promoted with small footprint 8-SOP 150mil package. With W83301S-R2 design, a high integration, high performance, and cost-effective solution is promoted.
Parametrics
W83310G-R2 absolute maximum ratings: (1)output offset voltage: 5mV; (2)load regulation: 1%; (3)input voltage range: 3.63V; (4)operating current of VCNTL: 1mA; (5)shutdown threshold trigger: 0.8V.
Features
W83310G-R2 features: (1)Regulates a bi-directional power with driving and sinking capability ; (2)Provides achieve peak 2.0 Amp/con t. 1.8 Amp driving and sinking current ; (3)Power MOSFET integrated ; (4)Low external component count ; (5)Low output voltage offset ; (6)Operates with +3.3V and +2.5V control power ; (7)Small package ; (8)Low cost and easy to use.

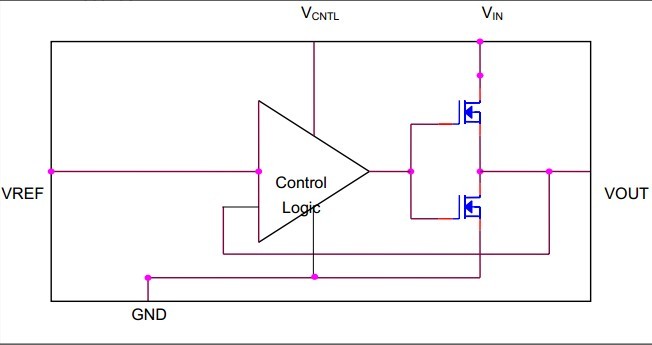

Diagrams
